Casting is an important manufacturing process widely applied in industries such as machinery, automotive, electronics, and aerospace. The basic principle of casting involves pouring molten metal into a mold, where it cools and solidifies to form the required shape and properties of the part. Based on different manufacturing needs, casting processes can be categorized into various types, with die casting and sand casting being the most common. These two processes each have distinct characteristics, with significant differences in material selection, production efficiency, cost control, and product quality. They are suited to different application scenarios. In this article, we will explore the basic principles, process features, advantages and disadvantages, as well as practical applications of die casting and sand casting, helping readers better understand these two casting technologies and make informed decisions during actual production processes.
Die casting is a casting technique that involves injecting molten metal into a metal mold cavity under high pressure, where it cools and solidifies to form a part. Compared to traditional gravity casting, die casting applies high pressure to ensure that the metal fills all the details of the mold accurately, producing high-precision parts.
Die casting is a process where molten metal is injected into a mold cavity under high pressure. This technique uses precision molds to inject molten metal at extremely high pressures, which quickly cools to form precision metal parts. Die casting is commonly used for metals like aluminum, zinc, and magnesium, which have good fluidity and can accurately fill the mold, ensuring precise part dimensions and surface finishes.
Die casting is divided into two types: cold chamber die casting and hot chamber die casting. Cold chamber die casting is typically used for metals with higher melting points, such as aluminum alloys, while hot chamber die casting is suitable for metals with lower melting points, such as zinc and magnesium alloys.
High Precision and Good Surface Quality: Die-cast parts have very high dimensional precision, usually meeting tight tolerance requirements. They also have excellent surface finish, often requiring little to no further processing.
Suitable for Mass Production: Due to the short production cycle, die casting is ideal for large-scale production. Once the mold is created, a large number of identical parts can be manufactured quickly, with consistent quality for each part.
High Production Efficiency: Die casting has extremely high production efficiency because the molds are permanent and can be reused repeatedly. Each production cycle is short, making it an ideal choice for mass production.
High-Pressure Injection: Die casting uses high-pressure injection (often up to 30,000 psi) to ensure that the metal fully fills the mold's details, reducing defects such as air pockets and cracks.
Cost Savings in Post-Processing: Due to the high precision and smooth surface of die-cast parts, they typically require minimal post-processing, thus lowering production costs.
Die casting is widely used in the manufacturing of precision, complex, and smooth-surfaced parts. It plays a vital role in industries such as automotive, electronics, home appliances, and consumer goods. Die casting meets various requirements for metal parts, including precision, lightweight, strength, and corrosion resistance, making it an essential technology in modern industrial manufacturing.
Sand casting is a traditional casting process that uses a sand mold to shape molten metal. It is one of the oldest and most commonly used casting methods, known for its flexibility and adaptability. Sand casting is widely used in various industries, ranging from small-batch production to large-scale manufacturing, particularly for producing large, complex parts.
Sand casting involves pouring molten metal into a sand mold to form the desired part. Unlike die casting, sand casting uses molds made from a mixture of sand, binders, and water, and these molds are expendable. The basic steps of sand casting include: creating a pattern (which can be made from wood, metal, or plastic), placing the pattern into a sand box, filling the sand and compacting it to form a mold cavity. After removing the pattern, a cavity is left, into which molten metal is poured and cooled to form the casting.
Sand casting is suitable for a variety of metal materials, especially iron alloys and non-ferrous metals. It is widely used for producing parts that are large, complex, or contain cavities inside.
Wide Material Selection: Sand casting can be used to cast a wide range of metal alloys, from iron alloys to non-ferrous metals like aluminum and copper alloys, offering high material adaptability.
Capability for Large and Complex Shapes: Sand casting can produce large and complex parts, particularly those with intricate internal structures and cavities, such as engine blocks and manifolds.
High Flexibility: Sand casting can adjust the mold shape according to different needs, making it highly flexible for small-batch and custom production.
Low Cost: Compared to die casting, sand casting has a lower initial investment, especially in mold manufacturing. The process is relatively simple and cost-effective, making it a viable option for small-batch production or on-demand production. For small and medium-sized enterprises, sand casting is an affordable choice.
Sand casting is commonly used to produce large parts, complex shapes, or parts with specific requirements. It is widely applied in industries such as automotive, aerospace, and energy. In particular, sand casting continues to hold an important position in industries that require the casting of complex metal parts, such as heavy machinery and steel manufacturing.

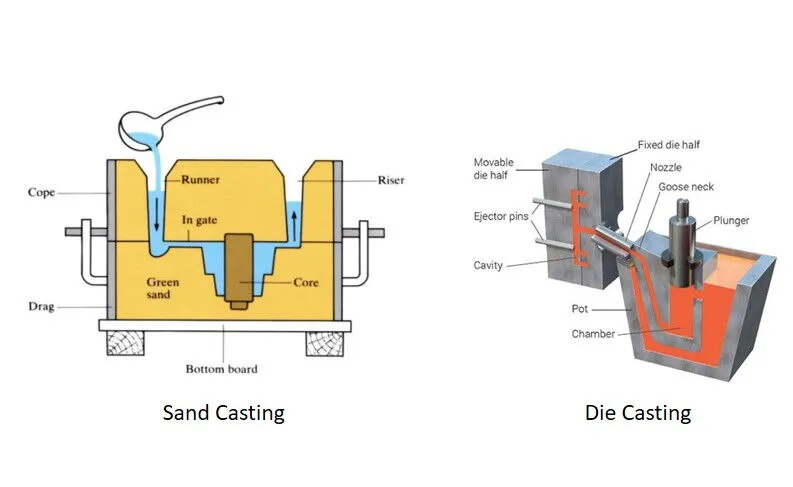

As two common metal casting processes, die casting and sand casting each have unique advantages and applications. Although their basic principle is similar—pouring molten metal into a mold to cool and form the part—there are significant differences in terms of production efficiency, cost, suitable materials, and product quality.
Die Casting: While die casting involves higher initial investment, especially for mold manufacturing and equipment purchase, the cost per unit decreases as production volume increases. Due to the short production cycles and high precision of each part, die casting is ideal for large-scale production.
Sand Casting: Sand casting has lower initial investment, particularly in mold manufacturing costs. For small-batch or on-demand production, sand casting is a more cost-effective choice. Additionally, sand casting molds can be reused, making it well-suited for multi-variety, small-batch production.
Die Casting: Die casting has high production efficiency. Since the molds are permanent, production can be completed quickly, with each cycle typically taking only a few seconds or minutes. It is suitable for mass, continuous production.
Sand Casting: The production cycle of sand casting is relatively longer, especially due to the mold-making and metal cooling processes. It is more suited for small-batch and custom production rather than mass continuous production.
Die Casting: Die casting is typically used for casting non-ferrous metals such as aluminum, zinc, and magnesium, which have good fluidity and ensure precise filling of the mold details.
Sand Casting: Sand casting is suitable for a wider variety of materials, including iron alloys and non-ferrous metals. Since the molds do not require high precision, sand casting can handle a greater variety of metals and is more adaptable.
Die Casting: Die-cast parts are highly precise, with excellent surface quality, requiring minimal post-processing. Due to high-pressure injection, die-cast parts can precisely replicate the mold details.
Sand Casting: Parts made through sand casting are generally of lower quality compared to die-cast parts, particularly in terms of dimensional accuracy and surface finish, which often require further processing. However, sand casting can still produce high-quality parts with complex structures and large dimensions.
When selecting a casting process, companies must consider factors such as production needs, part design, budget, and production volume.
Die Casting is ideal when high precision, excellent surface quality, and large-scale production are required. It is especially beneficial when high production efficiency and low post-processing are essential.
Sand Casting is more suitable for large parts, complex shapes, low-volume production, or custom manufacturing. Sand casting provides greater flexibility for parts with large physical sizes or specific material requirements.
Die casting and sand casting each have unique advantages and applications. Die casting, with its high precision, high efficiency, and low waste rate, is widely used in precision, large-volume production, particularly for high-precision, smooth-surfaced parts. It is ideal for casting non-ferrous metals such as aluminum, zinc, and magnesium, with applications in automotive, electronics, and other industries. Sand casting, with its low mold costs and material adaptability, is better suited for small-batch production and manufacturing complex, large parts. It can cast a variety of metal materials, including iron and non-ferrous alloys, and is used in industries like automotive, aerospace, and energy. Sand casting is especially advantageous for custom production or situations requiring frequent design adjustments. By carefully evaluating the advantages and disadvantages of each process, manufacturers can make more informed decisions, optimizing production costs and efficiency while meeting product quality requirements.
